Features & Benefits of Hailea Chillers,
- Microcomputer control system for the convenience of user
- High efficiency and energy savings. Water temperature will fall down quickly and economically
- Utilizes the Freon-free R134a refrigerant gas, which is safe and environment friendly (non oZone depleting)
- Anti-corrosive pure titanium evaporator for fresh & sea water dual use
- Temperature memory system that makes the chiller refrigerate continuously according to the previous temperature when the power is supplied again to protect the animals and plants in the aquarium.
- Fantastic price point for those seeking a value-for-money product.
- Practical designing and durable materials used contribute to a long lasting, functional product meeting the needs of aquarist
What is R134a Refrigerant?
R134a refers to the refrigerant gas used in chiller/air condition compressors.
It is a common refrigerant that is used in many air conditioning applications.
Due to the nature of R134a properties which is of a HFC (hydrofluorocarbon) refrigerant, it does not have any ozone depletion potential and has little greenhouse effect.
Directions for Use:
- During/after transporting and/or fixing up the chiller, allow it to stand upright for at least 3-6 hours before powering it up. This reduces unnecessary damage by allowing the oil and fluid to flow back into the compressor.
- Do not place the chiller outdoors or near any heat source.
- Do not place the chiller in enclosed cabinets.
- Place the chiller approximately 30cm away from walls to facilitate ventilation.
- Do not cover the chiller while it is in operation as this will cause over-heating.
- For use with marine setups, it is recommended to install the chiller after the filtration systems. This is to ensure the durability and function of the evaporator.
- Regular maintenance of the circulating systems, front draft hood and air filters are advised at once every month.
- For troubleshooting of issues such as not being able to power on the unit, faulty powering issues, lack of refrigeration, or loud noises / vibration from the unit. Please refer to the instructions booklet for suggestions on basic problem solving.

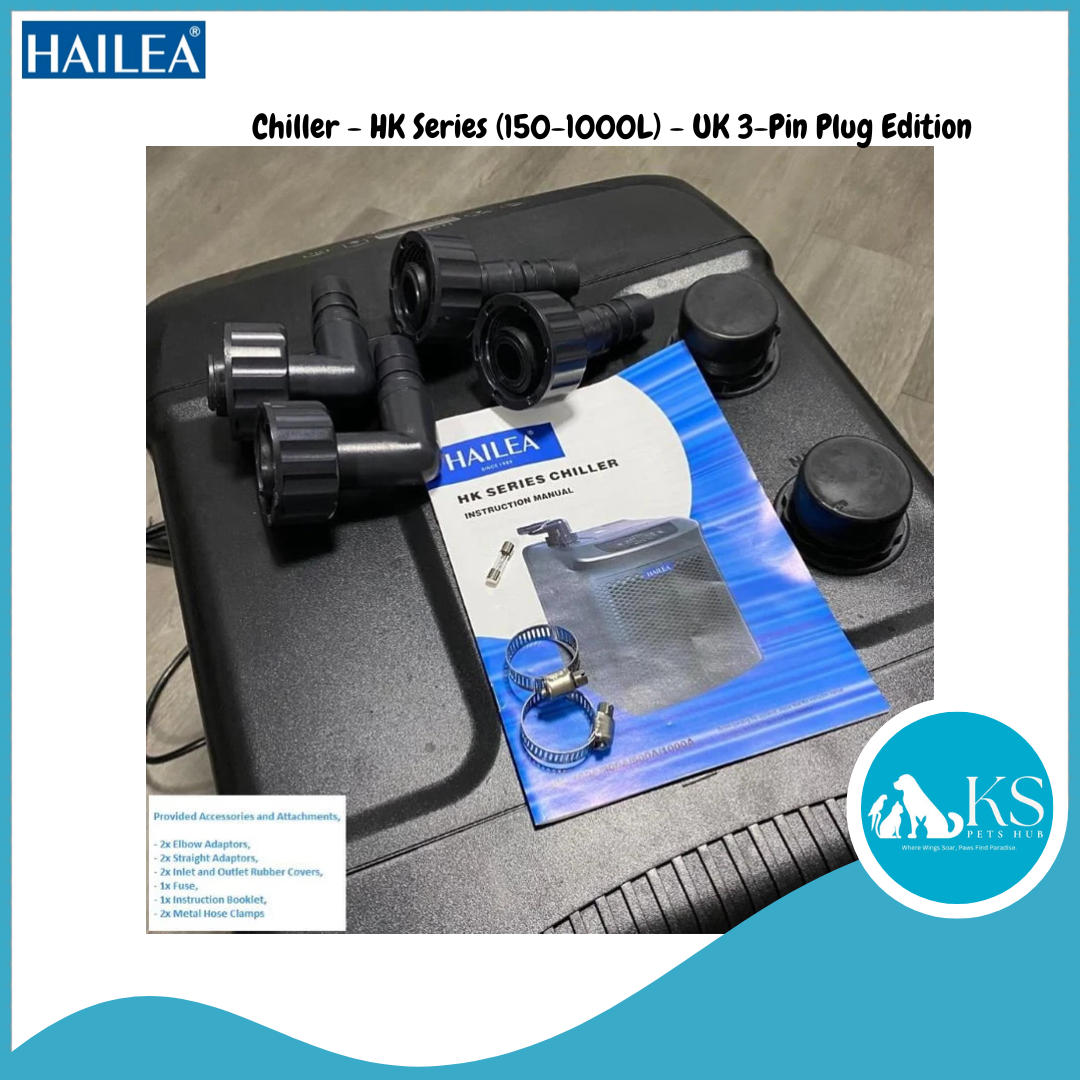

Provided Accessories and Attachments:

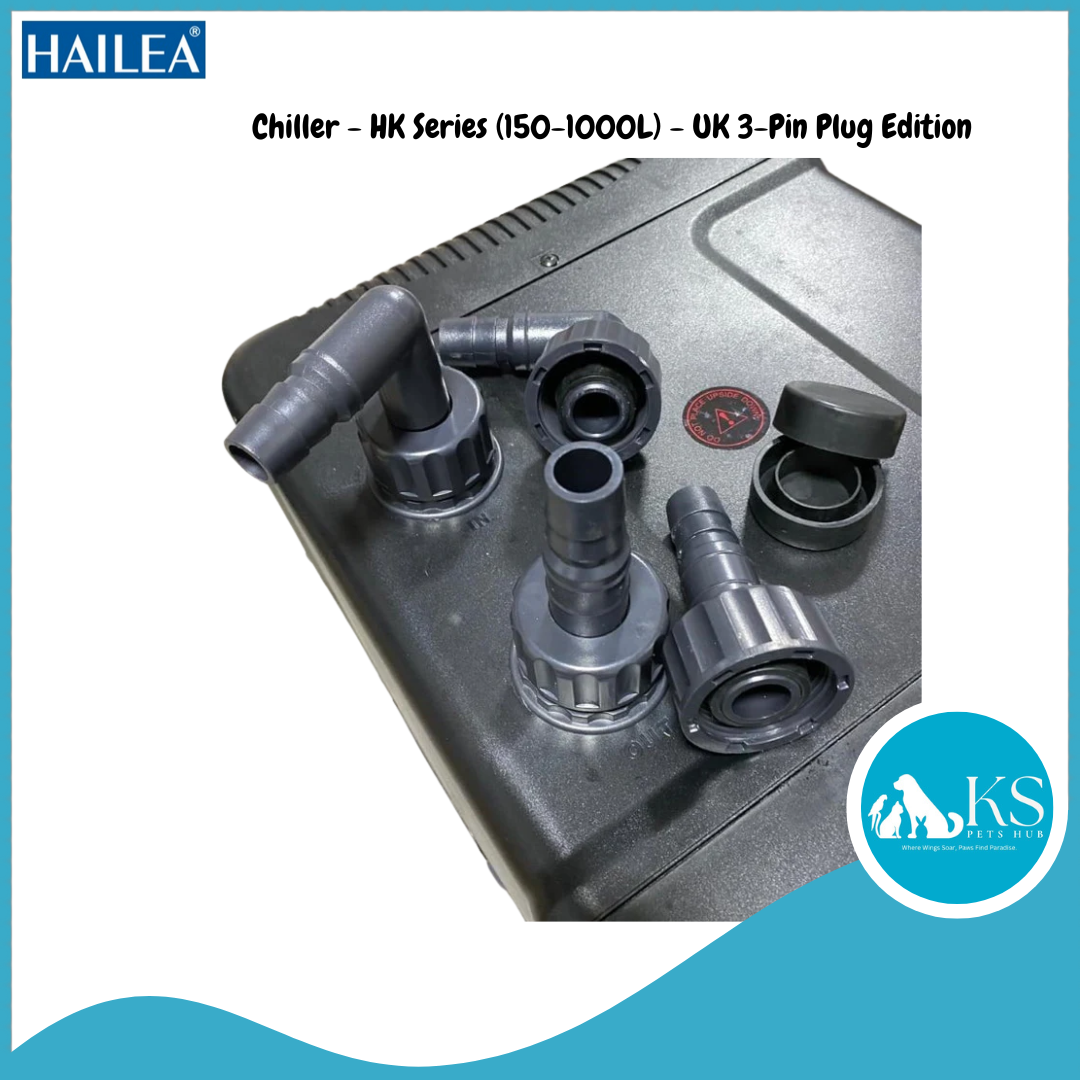

- 2x Elbow adaptors,
- 2x Straight adaptors,
- 2x Inlet and outlet rubber covers,
- 1x Fuse,
- 1x Instruction booklet,
- 2x Metal hose clamps
Technical Data:
HK150A
- Power : 1/10HP
- Water Refrigerated : 150L
- Iced Medium : R134a
- Rate of Flow : 250 - 1200 L/H
- Weight : 13kg
- Dimension : 430 x 255 x 380mm
- Adaptor Diameter: 12mm
HK300A
- Power : 1/4HP
- Water Refrigerated : 300L
- Iced Medium : R134a
- Rate of Flow : 1000 - 2500 L/H
- Weight : 18.6kg
- Dimension : 457 x 330 x 430mm
- Adaptor Diameter: 16mm & 19mm
HK500A
- Power : 1/2HP
- Water Refrigerated : 500L
- Iced Medium : R134a
- Rate of Flow : 1200 - 3000 L/H
- Weight : 20kg
- Dimension : 480 x 355 x 480mm
- Adaptor Diameter: 16mm & 19mm
HK1000A
- Power : 1HP
- Water Refrigerated : 1000L
- Iced Medium : R134a
- Rate of Flow : 1500 - 4000 L/H
- Weight : 31.3kg
- Dimension : 560 x 380 x 480mm
- Adaptor Diameter: 25mm
